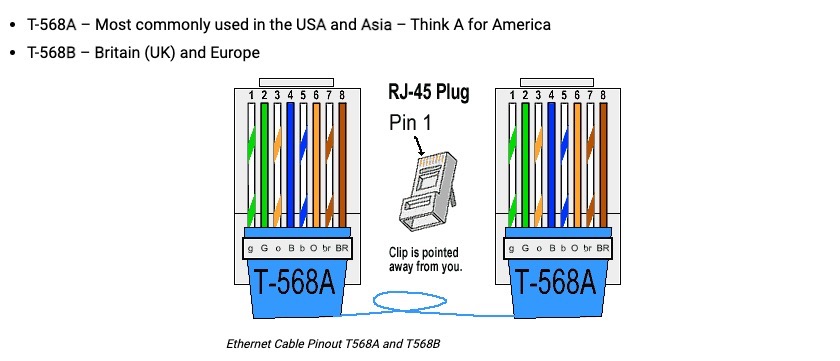

RJ45 Pinout for a LAN Cable:
Pin 1 → White and Green (Transmit +)
Pin 2 → Green (Transmit -)
Pin 3 → White and Orange (Receive +)
Pin 4 → Blue
Pin 5 → White and Blue
Pin 6 → Orange (Receive -)
Pin 7 → White and Brown
Pin 8 → Brown
RJ45 Pinout Wiring Diagram for Ethernet Cat 5, 6 and 7 - Satoms
satoms.com
Modular RJ45 Plugs with Load Bar
Use "Modular RJ45 Plugs with Load Bar":
